Stainless Steel Ferrule Rope Mesh
The stainless steel wire rope woven mesh are hand-woven from the stainless steel wire rope, the rope construction is 7×7or 7×19. The stainless mesh angle is 90°, The components are made from AISI304 or AISI316 material group. Originally intended and now are widely used in zoos for the construction of animal enclosure, animal cage and aviary, so we could also call it "zoo mesh". Meanwhile, it could be also applied in the architecture.
You can create a natural environment totally enclosed with zoo mesh and replace unsightly chicken wire or non-metal mesh. The chicken wire or non-metal mesh require constant maintenance and have a relatively short-term life span. But zoo mesh's physical properties are incredibly well suited for the above mentioned applications, most importantly, it is no need to any maintenance, and the life span will be more than 30 years.
Product Description
 |  |
 |  |
Features:
· Light weight and high flexibility.
Stainless steel ferrule rope mesh is light, and its width, length, rope diameter and opening size can be modified. What's more, diagonal and irregular shapes are also available. So stainless steel ferrule rope mesh is easy to install in any conditions and it is widely used in many places.
· High strength, resistant to fatigue and impact.

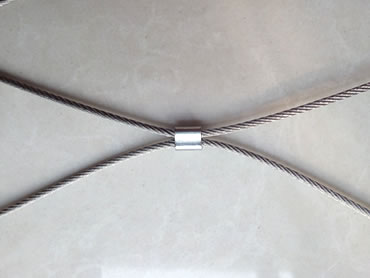

Ferrules combine stainless steel ropes firmly, making the mesh form a strong whole. Therefore, stainless steel ferrule rope mesh is resistant to fatigue and impact.
· Good softness.
The rope construction is 7 × 7 or 7 × 19, making stainless steel ferrule rope mesh very soft. Therefore, it can be curved and folded easily, which makes it effortless to transport. And this property also makes it easy to install. Above all, it will not hurt hands.
· Excellent rust-resistance, recyclable and durable.
Stainless steel ferrule rope mesh is made up from 304, 316, 304L or 316L, so it is resistant to rust. Its life span can be up to more than 30 years as a result.
· Outstanding perspectivity and grand appearance.

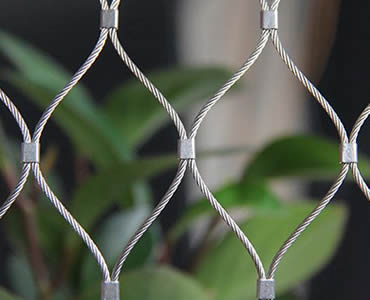

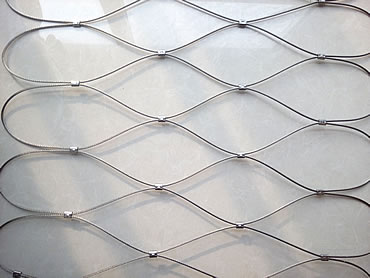

Stainless steel ferrule rope mesh has diamond-shaped openings and ferrules, making it have great perspectivity and pretty appearance. Therefore, it is widely used as bird aviaries, animal enclosure, animal cages, building decoration and so on. And the stainless steel ferrule rope mesh itself is a big landscape.
· Maintenance-free and environmentally friendly.
There is no toxic material in stainless steel ferrule rope mesh. With time going by, it will not rust and deform. Therefore, there is no need to maintain it. Once it is installed, it can be used forever.
The specification of stainless steel ferrule rope mesh | ||||||
Code | Rope Construction | Rope Diameter | Aperture | Breaking Force | ||
Inch | mm | mm | kN | |||
UN-01 | 7 × 19 | 1/8 | 3.2 | 120 × 208 | 7.38 | |
UN-02 | 7 × 19 | 1/8 | 3.2 | 100 × 173 | 7.38 | |
UN-03 | 7 × 19 | 1/8 | 3.2 | 90 × 156 | 7.38 | |
UN-04 | 7 × 7 | 3/32 | 2.4 | 100 × 173 | 4.18 | |
UN-05 | 7 × 7 | 3/32 | 2.4 | 90 × 156 | 4.18 | |
UN-06 | 7 × 7 | 3/32 | 2.4 | 80 × 139 | 4.18 | |
UN-07 | 7 × 7 | 3/32 | 2.4 | 70 × 121 | 4.18 | |
UN-08 | 7 × 7 | 5/64 | 2.0 | 100 × 173 | 3.17 | |
UN-09 | 7 × 7 | 5/64 | 2.0 | 90 × 156 | 3.17 | |
UN-10 | 7 × 7 | 5/64 | 2.0 | 80 × 139 | 3.17 | |
UN-11 | 7 × 7 | 5/64 | 2.0 | 70 × 121 | 3.17 | |
UN-12 | 7 × 7 | 1/16 | 1.6 | 80 × 139 | 2.17 | |
UN-13 | 7 × 7 | 1/16 | 1.6 | 70 × 121 | 2.17 | |
UN-14 | 7 × 7 | 1/16 | 1.6 | 60 × 104 | 2.17 | |
UN-15 | 7 × 7 | 1/16 | 1.6 | 51 × 87 | 2.17 | |
UN-16 | 7 × 7 | 3/64 | 1.2 | 80 × 139 | 1.22 | |
UN-17 | 7 × 7 | 3/64 | 1.2 | 60 × 104 | 1.22 | |
UN-18 | 7 × 7 | 3/64 | 1.2 | 50 × 87 | 1.22 | |
UN-19 | 7 × 7 | 3/64 | 1.2 | 40 × 69 | 1.22 | |
