The Inconel alloys, based on nickel and chromium, have exceptionally broad usefulness. The alloys provide resistance to reducing and oxidizing corrosive solutions, and to high-temperature deterioration while displaying excellent creep-rupture properties. The addition of various elements to the basic nickel-chromium system enhances specific strength or corrosion resistance properties.
Product Description

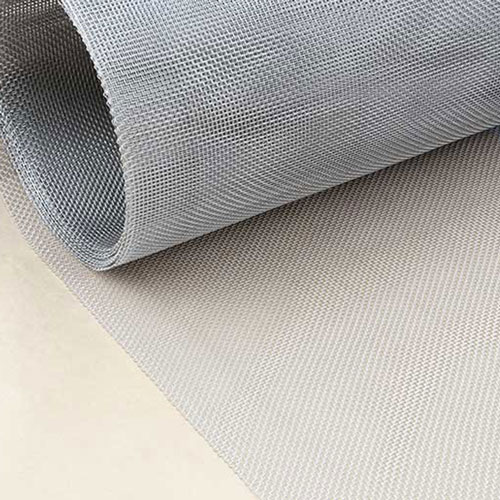

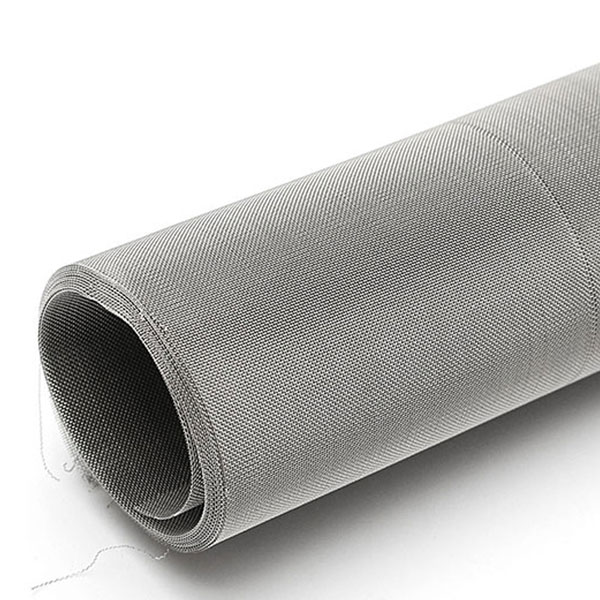

Inconel 600/800Series is non-magnetic, has better oxidation resistance than pure nickel and good resistance to chloride-ion stress corrosion.
| Wire Mesh | Wire | Type | Width | % Open | Notes |
| (Wires/In.) | Diameter | Weave | Opening | Area | |
| 10 x 10 | 0.4 | Plain | 0.084 | 70.6 | |
| 10 x 10 | 0.63 | Plain | 0.075 | 56.3 | |
| 20 x 20 | 0.4 | Plain | 0.034 | 46.2 | |
| 35 x 35 | 0.3 | Plain | 0.0236 | 68.1 | |
| 40 x 40 | 0.25 | Plain | 0.015 | 36 | |
| 50 x 50 | 0.2 | Plain | 0.016 | 64 | |
| 60 x 60 | 0.19 | Plain | 0.0092 | 30.3 | |
| 100 x 100 | 0.1 | Plain | 0.006 | 36 | |
| 120 x 120 | 0.08 | Plain | 0.0063 | 57.8 | |
| 200 x 200 | 0.05 | Plain | 0.003 | 36 |
