  • Monel Wire Cloth

  • Monel Wire Cloth

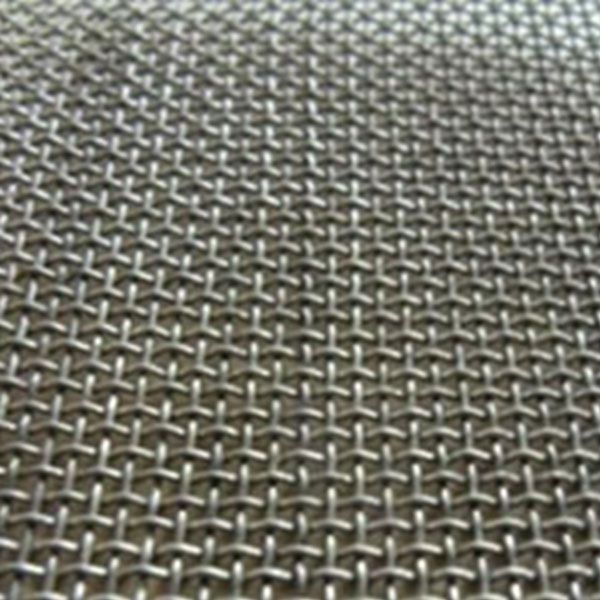

Monel Wire Cloth

Product Description

Chemical Composition List of Monel 400 and Monel K500

Monel 400≤0.30≤2.00≤0.50≤0.024≥6328.0~34.0≤2.5

Monel K500≤0.25≤1.50≤0.50≤0.010≥6327.0

Monel 400 Alloy Wire Mesh Technical Details: Both Chemical and Physical
Chemical ComponentsPhysical Property
ComponentsContent %Density8.91g/cm3
Nickel63.0Electric Resistance4.98e-005 ohm-cm
Copper28.0min-34.0maxHeating0.414 J/g-°C
Iron2.5maxHeating Conducting21 W/m-°C
Manganese2.0maxMagnetic1.0047(AT 78 0F)
Carbon0.3maxCoefficient of thermal expansion
Aluminum0.05max70 - 500 F8.5
Sulfur0.024max70 - 1000 F9.2

Main Specifications of Monel Woven Wire Mesh
Mesh/InchWire Diameter mmAperture
-Mesh/InchWire Diameter
2 mesh1.810.940 mesh0.210.425
3 mesh1.66.86650 mesh0.190.318
4 mesh1.25.1560 mesh0.150.273
5 mesh0.914.1770 mesh0.140.223
6 mesh0.83.43380 mesh0.120.198
8 mesh0.62.57590 mesh0.110.172
10 mesh0.551.99100 mesh0.10.154
12 mesh0.51.616120 mesh0.080.132
14 mesh0.451.362140 mesh0.070.111
16 mesh0.41.188150 mesh0.0650.104
18 mesh0.351.06160 mesh0.0650.094
20 mesh0.30.97180 mesh0.0530.088
26 mesh0.280.696200 mesh0.0530.074
30 mesh0.250.596

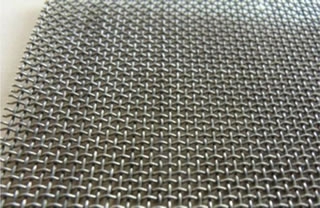

Monel 400 Woven Wire Mesh

Monel 400 Wire Mesh significantly resists de-aerated hydrochloric acid and hydrofluoric acids. It provides broad resistance to stress corrosion cracking in the fresh water and other corrosion conditions. It shows intense mechanical features at the subzero temperatures and firmness and toughness. It doesn't exhibit ductile to brittle transformation when quenched to fluid hydrogen temperature level.

Monel K 500 Woven Wire Mesh

Monel K500 Wire Mesh offers excellent resistance to corrosion as well as large strength and hardness. The strength of this alloy is retained up to 1200oF however it shows ductility and toughness up to 400oF. It has very high melting temperature of 2400oF to 2460oF.

Benefits of Using Monel K500 compared with Monel 400 Wire Mesh:

The Monel K500 alloy has almost three times higher yield strength and tensile strength as compare to Monel 400 mesh. In the age toughened form, it has larger competency against the stress corrosion cracking and offers more resistance to sour gas conditions.

Manufacture's Advices to Monel K500 alloy Mesh:

The alloy shows non magnetic features and spark resistance up to 200oF but it is possible to produce the magnetic layer on the alloy's surface while processing. The copper and aluminum elements are specifically oxidized during heating that produce the magnetic nickel layer outside the alloy surface. The magnetic properties can be removed by pickling.

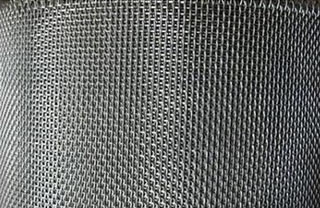

Coarse Opening Monel Wire Mesh Description Examples:

1. Monel mesh:3 ft wd x 100 ft lg, mesh size 1/4 in x 1/4 in, dia wire 0.057 in:
Item specifications:
Woven wire mesh,metallic,no mod
Material: monel
Mesh size: 1/4" x 1/4" in
Roll size: width 3 ft x 100 ft x 17 swg
Strand size/wire diameter: 0.057 inch
Type: wire netting
Additional information: shape aperture: square
Monel wire mesh, minimum width 3 feet, (in roll of 100 feet
1/4" x 1/4"mesh, 17 swg wire gauge

2. Monel woven wire mesh:3 ft width x 100 ft length, mesh size 4 x 4,dia wire 0.047 in
item specifications:
Wire mesh, metallic, no mod,
Material: Monel
Mesh size: 4 x 4 per in
Roll size: width 3 x 100 ft
Strand size/wire diameter: 0.047 inch
Type: wire netting
Additional information:
Shape of aperture: square
Mesh per inch linear: 4 x 4

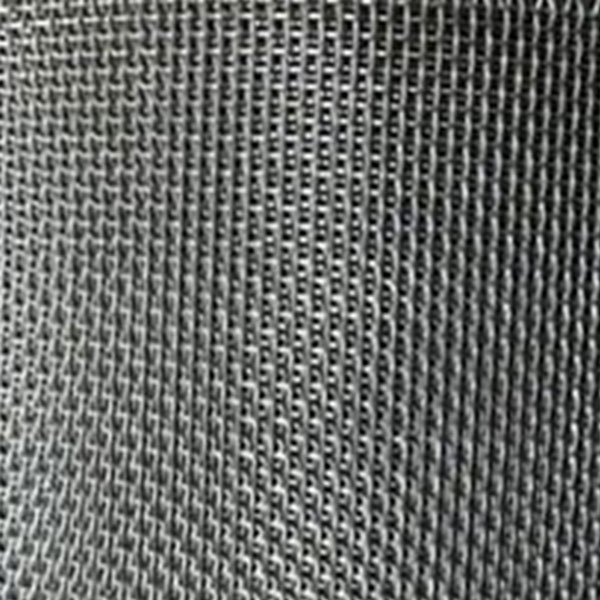

Filter Grade Monel Wire Cloth:

Monel wire cloth, 36'' roll wide, 60''roll length, 100 mesh X 0.0045'' wire diameter.
Woven monel wire cloth, filtration rating: 10µm.

Monel Wire ClothMonel Wire Cloth

Monel 400 Series Wire Mesh, 1/4 in x 1/4 in, wire 0.057 inch

Monel K 500 Series Wire Mesh Suitable for Sour Gas Filtering
