Monel Wire Mesh

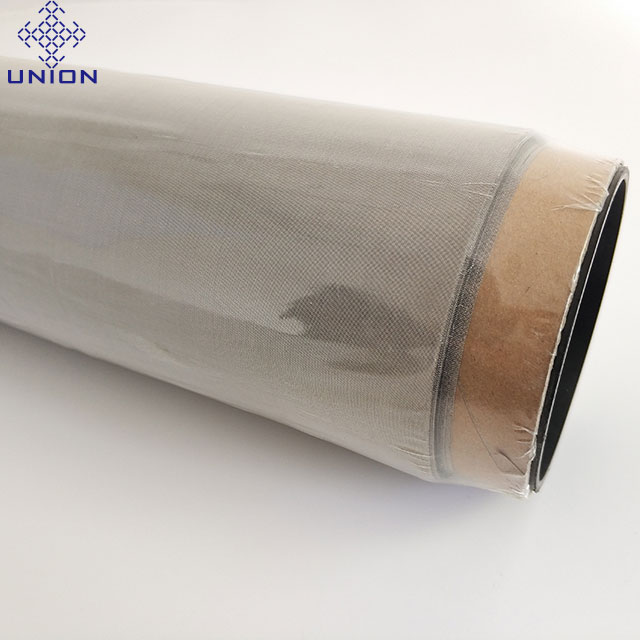

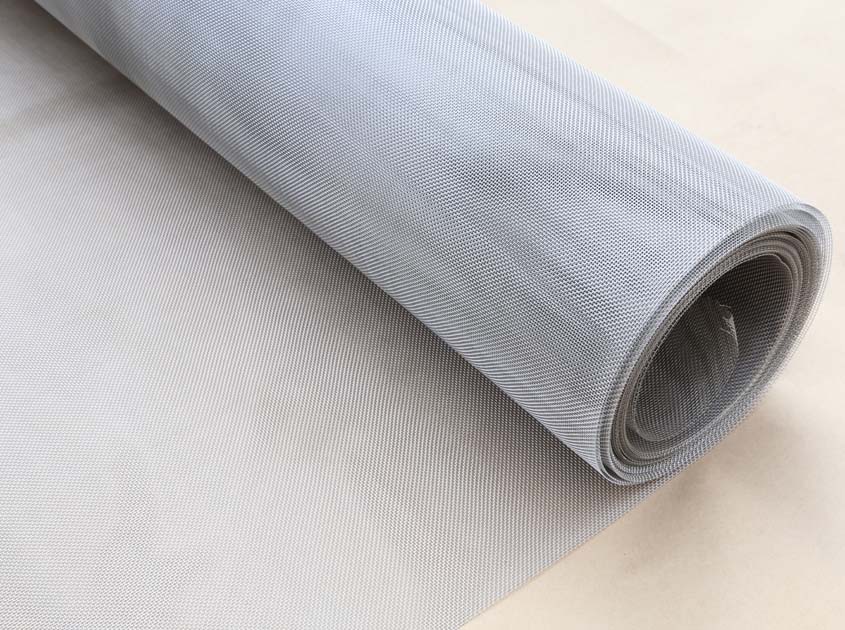

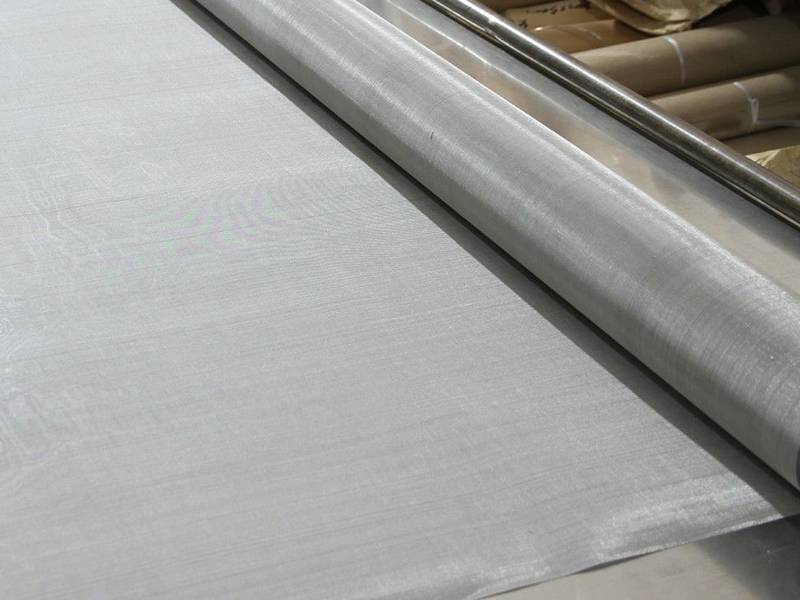

Monel 400 Woven Wire Mesh

Monel 400 Wire Mesh significantly resists de-aerated hydrochloric acid and hydrofluoric acids. It provides broad resistance to stress corrosion cracking in the fresh water and other corrosion conditions. It shows intense mechanical features at the subzero temperatures and firmness and toughness. It doesn't exhibit ductile to brittle transformation when quenched to fluid hydrogen temperature level.

Inquire Now

Product Description

Monel K 500 Woven Wire Mesh

Monel K500 Wire Mesh offers excellent resistance to corrosion as well as large strength and hardness. The strength of this alloy is retained up to 1200oF however it shows ductility and toughness up to 400oF. It has very high melting temperature of 2400oF to 2460oF.

Benefits of Using Monel K500 compared with Monel 400 Wire Mesh:

The Monel K500 alloy has almost three times higher yield strength and tensile strength as compare to Monel 400 mesh. In the age toughened form, it has larger competency against the stress corrosion cracking and offers more resistance to sour gas conditions.

Manufacture's Advices to Monel K500 alloy Mesh:

The alloy shows non magnetic features and spark resistance up to 200oF but it is possible to produce the magnetic layer on the alloy's surface while processing. The copper and aluminum elements are specifically oxidized during heating that produce the magnetic nickel layer outside the alloy surface. The magnetic properties can be removed by pickling.

Chemical Composition List of Monel 400 and Monel K500

Material	C	Mn	Si	S	Ni	Cu	Fe
Monel 400	≤0.30	≤2.00	≤0.50	≤0.024	≥63	28.0~34.0	≤2.5

Material	C	Mn	Si	S	Ni	Cu	Ti	Al	Fe
Monel K500	≤0.25	≤1.50	≤0.50	≤0.010	≥63	27.0 ~33.0	0.35 ~0.85	2.30 ~3.15	≤2.0

Monel 400 Alloy Wire Mesh Technical Details: Both Chemical and Physical
Chemical Components		Physical Property
Components	Content %	Density	8.91g/cm3
Nickel	63.0	Electric Resistance	4.98e-005 ohm-cm
Copper	28.0min-34.0max	Heating	0.414 J/g-°C
Iron	2.5max	Heating Conducting	21 W/m-°C
Manganese	2.0max	Magnetic	1.0047(AT 78 0F)
Carbon	0.3max	Coefficient of thermal expansion
Silicon	0.5max	70-200F	7.4
Aluminum	0.05max	70 - 500 F	8.5
Sulfur	0.024max	70 - 1000 F	9.2

Main Specifications of Monel Woven Wire Mesh
Mesh/Inch	Wire Diameter mm	Aperture mm	-	Mesh/Inch	Wire Diameter mm	Aperture mm
2 mesh	1.8	10.9		40 mesh	0.21	0.425
3 mesh	1.6	6.866		50 mesh	0.19	0.318
4 mesh	1.2	5.15		60 mesh	0.15	0.273
5 mesh	0.91	4.17		70 mesh	0.14	0.223
6 mesh	0.8	3.433		80 mesh	0.12	0.198
8 mesh	0.6	2.575		90 mesh	0.11	0.172
10 mesh	0.55	1.99		100 mesh	0.1	0.154
12 mesh	0.5	1.616		120 mesh	0.08	0.132
14 mesh	0.45	1.362		140 mesh	0.07	0.111
16 mesh	0.4	1.188		150 mesh	0.065	0.104
18 mesh	0.35	1.06		160 mesh	0.065	0.094
20 mesh	0.3	0.97		180 mesh	0.053	0.088
26 mesh	0.28	0.696		200 mesh	0.053	0.074
30 mesh	0.25	0.596

Coarse Opening Monel Wire Mesh Description Examples:

1. Monel mesh:3 ft wd x 100 ft lg, mesh size 1/4 in x 1/4 in, dia wire 0.057 in:
Item specifications:
Woven wire mesh,metallic,no mod
Material: monel
Mesh size: 1/4" x 1/4" in
Roll size: width 3 ft x 100 ft x 17 swg
Strand size/wire diameter: 0.057 inch
Type: wire netting
Additional information: shape aperture: square
Monel wire mesh, minimum width 3 feet, (in roll of 100 feet
1/4" x 1/4"mesh, 17 swg wire gauge

2. Monel woven wire mesh:3 ft width x 100 ft length, mesh size 4 x 4,dia wire 0.047 in
item specifications:
Wire mesh, metallic, no mod,
Material: Monel
Mesh size: 4 x 4 per in
Roll size: width 3 x 100 ft
Strand size/wire diameter: 0.047 inch
Type: wire netting
Additional information:
Shape of aperture: square
Mesh per inch linear: 4 x 4

Filter Grade Monel Wire Cloth:

Monel wire cloth, 36'' roll wide, 60''roll length, 100 mesh X 0.0045'' wire diameter.
Woven monel wire cloth, filtration rating: 10µm.
